Paramount
Productivity

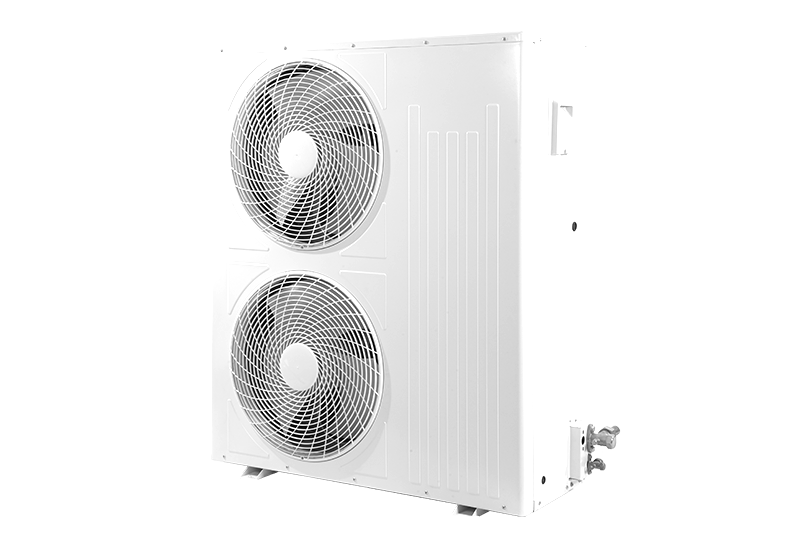

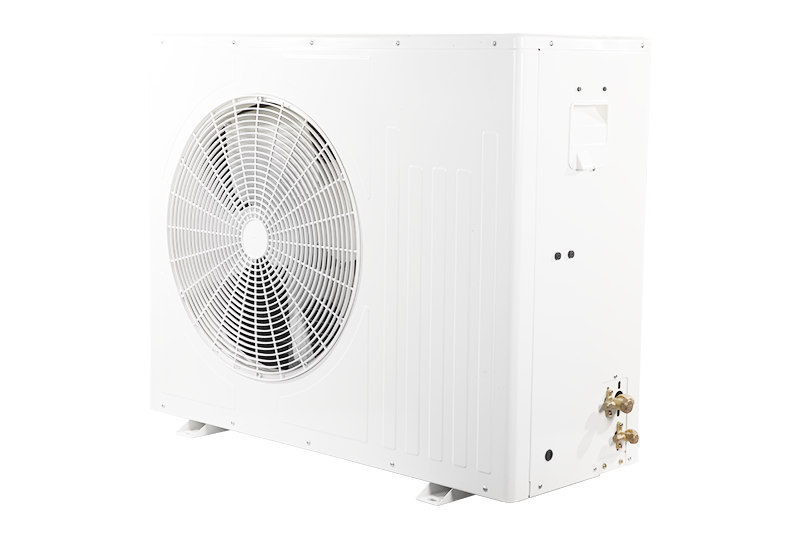

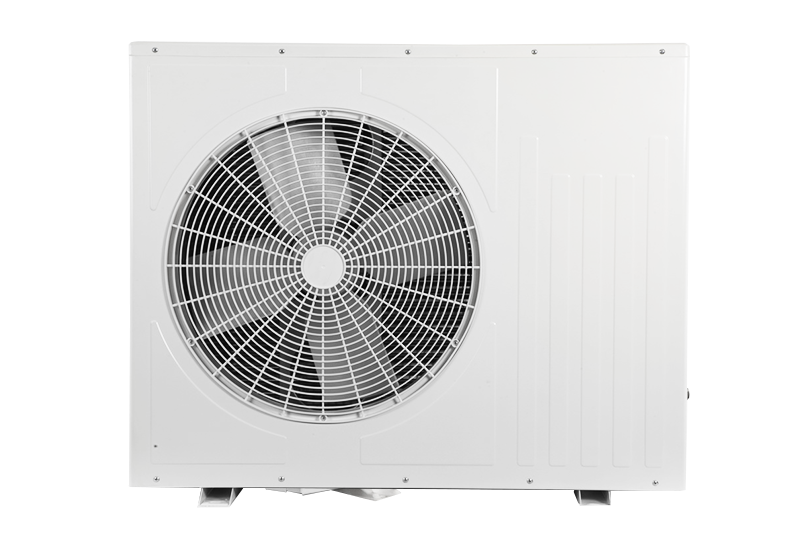

Our condensing units are made compact with high-performance noiseless fans, high-quality copper tubes and mechanically bonded fins, for top results. Manufacturing it greatly is no easy task. It’s important to design and position the fan blades, motors, and coils correctly to ensure maximum productivity and Prijai’s R&D team takes immense care to get things done precisely.
Features
Specifications
| Model | (1.5TR) 18 | (2TR) 24 | (3TR) 36 | (4TR) 48 | (5TR) 60 | |
|---|---|---|---|---|---|---|
| Cooling Capacity | Btu / Hr | 18000 | 24000 | 36000 | 48000 | 60000 |
| Nominal | Kw | 5.275 | 7.030 | 10.550 | 14.060 | 17.580 |
| Compressor Type | Type | Rotary, Reciprocating | Rotary, Reciprocating, Scroll | Scroll, Reciprocating | Scroll, Reciprocating | Scroll, Reciprocating |
| Electrical Power Supply | V / Ph / Hz | 220-240 / 1 / 50 | 220-240 / 1 / 50 | 380-420 / 3 / 50 | 380-420 / 3 / 50 | 380-420 / 3 / 50 |
| Condenser Coil | Type | Fin and Tube Type with Corugated Sine Wave or Lanced Sine Wave | ||||
| Condenser Fan | Type | Propeller Fan | Propeller Fan | Propeller Fan | Propeller Fan | Propeller Fan |
| Motor Fan | Nos. | 1 | 1 | 1 | 2 | 2 |
| Refrigerant | Type | Optional | Optional | Optional | Optional | Optional |
| Diameter Fan | Inches | 18” | 18” | 20” | 18” | 18” |
| Connection | ||||||
| Suction | Inches | 1/2” | 5/8” | 3/4” | 7/8” | 7/8” |
| Liquid | Yes | 1/4” | 3/8” | 3/8” | 1/2” | 1/2” |
| Dimension | ||||||
| Width | mm | 846 | 846 | 970 | 970 | 970 |
| Height | mm | 584 | 584 | 773 | 1138 | 1138 |
| Depth | mm | 298 | 298 | 380 | 380 | 380 |
